Your Trusted Partner in Semiconductor Testing

The Evolution of Co-Packaged Optics (CPO) Advanced Testing Methodologies for Silicon Photonics Ai

Published Date 2026/05/14

Version v1.0

Presenter: Collins Sun

01

02

03

04

05

CPO and Test Flow

Bottleneck of Testing in CPO Production

CPO Roadmap & Trend

CPO/CPC Application

WinWay CPO/CPC Total Solution

Winkay

Tech

CPO and Test Flow

Winkay

Tech

Optical Industry M&A Wave in the AI Era

Nov 2024

Celestial AI acquires Rockley Photonics IP

Feb 2025

Nokia acquires Infinera

May 2025

AMD acquires Enosemi

Optical networking & DCI $2.3B

Dec 2025

Marvell to acquire Celestial AI

Apr 2026

Credo to acquire DustPhotonics

Apr 2026

Marvell acquires Polariton Technologies

$5.5M

Optical scale-up for AI

SiPho PIC vertical integration $1.3B

Undisclosed

Plasmonics + SiPho modulation

Chipmakers & Hyperscalers Back Photonics

Oct 2024

Google Ventures et al.

• → Lightmatter

Oct 2024

Cisco • NVIDIA

• → Xscape Photonics

Dec 2024

AMD • Intel • NVIDIA

• → AyarLabs

IC Design (joint) → Optical I/O

CSP → Photonic Computing

CSP/Networking + IC → DWDM

Feb 2026

MediaTek

• → AyarLabs

Mar 2026

NVIDIA

• → Lumentum

Mar 2026

NVIDIA

• → Coherent

$90M

IC Design → Optical I/O

IC Design → Laser / SiPho

$2.0B

$2.0B

IC Design → Laser / Networking

No Single Company Can Solve These Problems

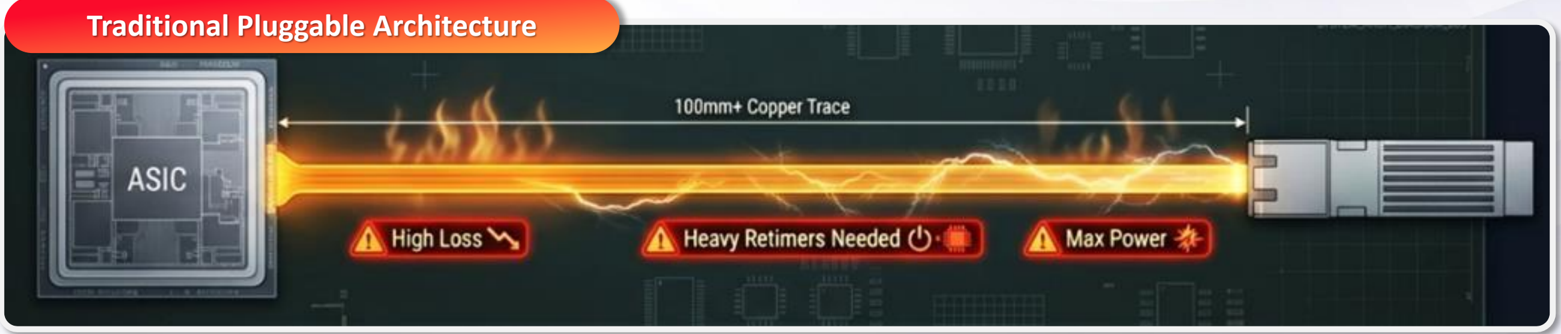

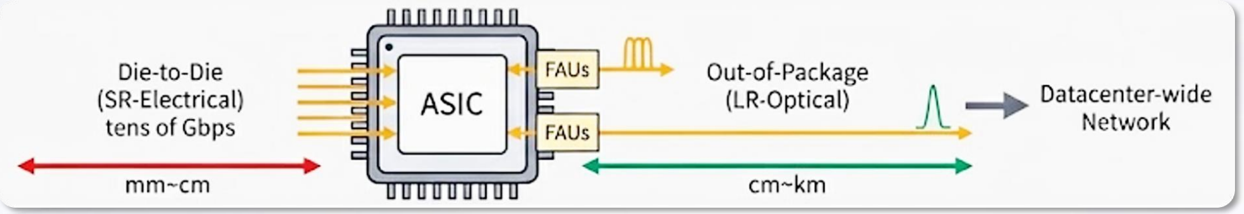

The Cost of Distance

Light and electricity are not competing technologies. They are two manifestations of the exact same physical essence.

Light and Electricity : Two Quadrants of the Same Electromagnetic Field WinWay 77 It 74 $

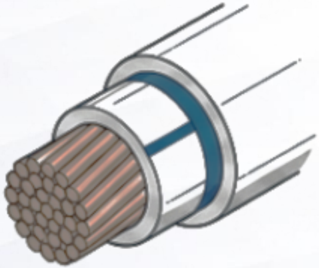

Electrical

• Electron
• Conductor with return path
• Copper + Dielectric (Dk/Df)
• Skin effect~1dB/cm@53GHz
• mm~cm(in-package)
• Severe EMI, Coupling

Loss

~1 dB/cm v.s <0.2 dB/km

Frequency

DC~100 GHz v.s ~193 THz

Distance

mmcm (SR) v.s cmkm (LR)

EMI

EMI Sensitive v.s EMI immune

Optical

• Photon

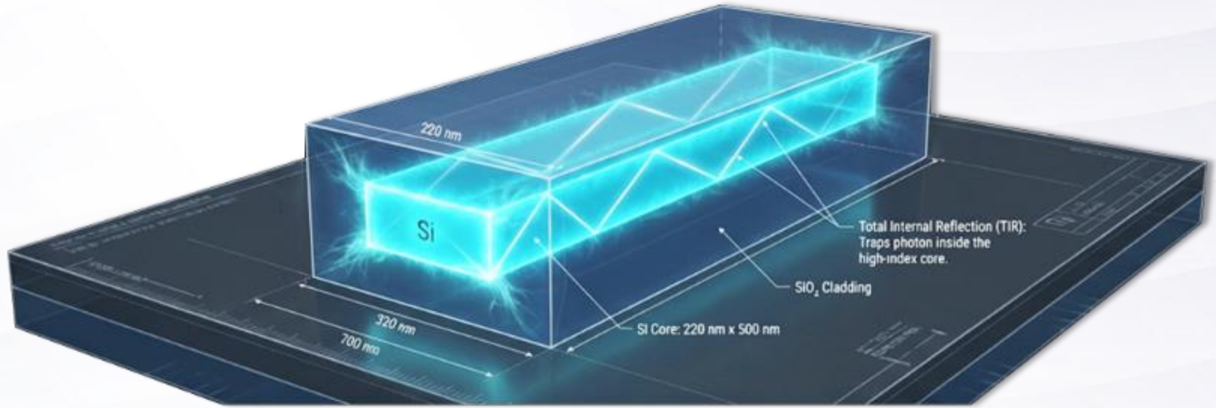

• Internal reflection in wave guide
• Si+SiO2
• Rayleigh scatter <0.2dB/km@1550nm
• cm~km Cross datacenter
• EMI Immune

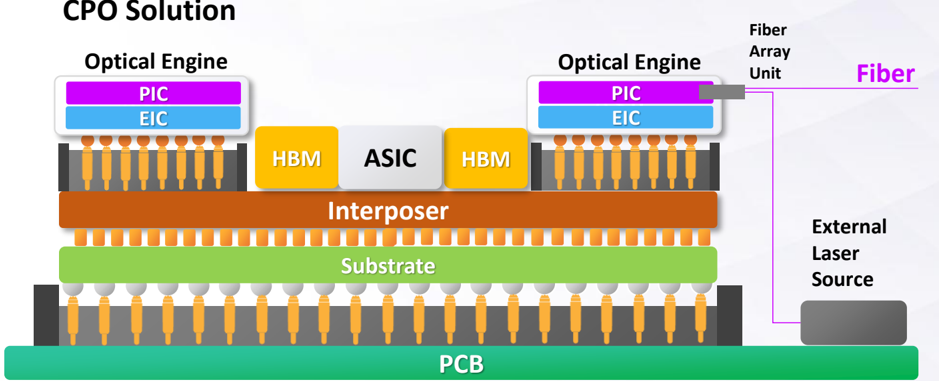

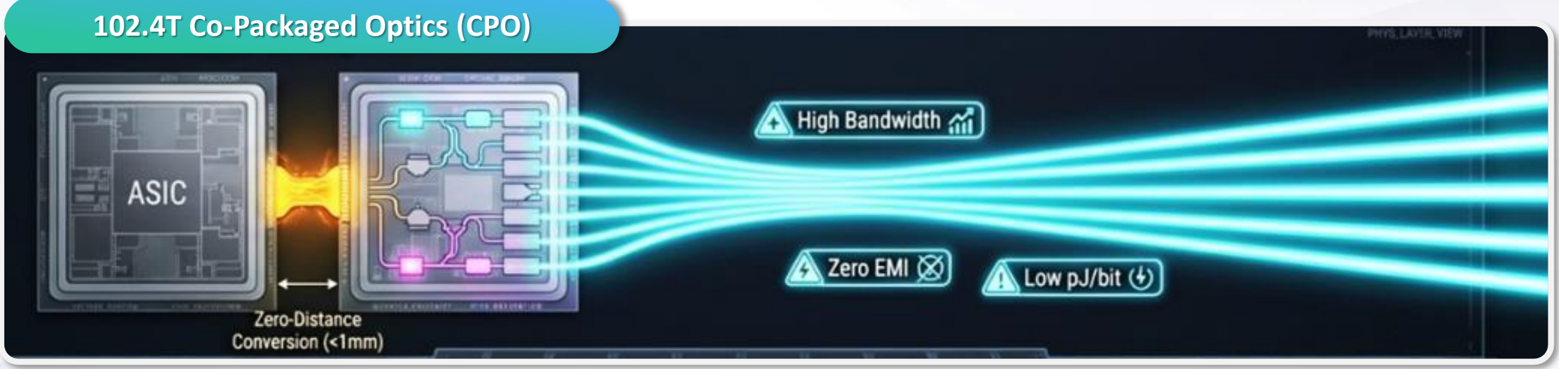

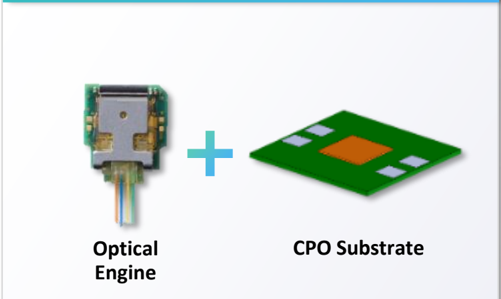

CPO (Co-Packaged Optics)

Optical Engine

Optical Circuit

~2016

Co-Packaged Optics Trend

Pluggable Optics

100% Cu

2023

OBO (On-Board Optics)

80% Cu + 20% Optics

2025

NPO (Near-Packaged Optics)

50% Cu + 50% Optics

2027

2.5D CPO (COUPE Switch)

20% Cu + 80% Optics

2030~

3D CPO (COUPE XPU)

100% Optics

Bandwidth	~800G	<1.6T	<3.2T	<6.4T	12.8T~
Power Use	1x	~0.8x	~0.6x	<0.5x	<0.1x
Latency	1x	<0.75x	<0.5x	<0.1x	<0.05x

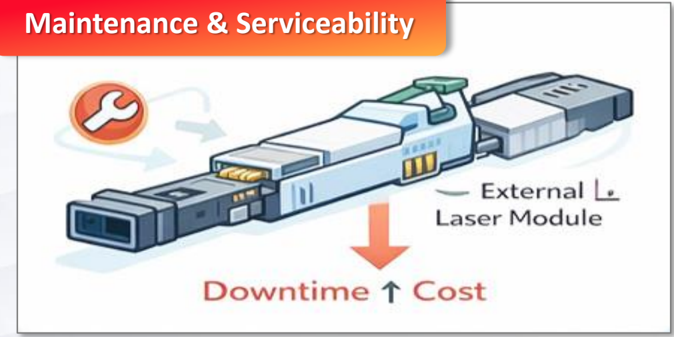

Maintenance

Electrical Circuit

Connector

Source : Counterpoint Research 《矽光子與共同封裝光學（ CPO ）報告》

Silicon Photonics Supply Chain

Source : SEMI VISION

The Photonic Integrated Circuit (PIC) Blueprint

Source : Official Website

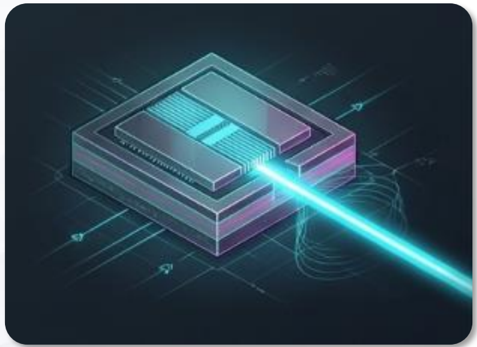

Step1 : The Light Source Matrix

DFB Laser

(Distributed Feedback)

Highly Stable wavelength, narrow linewidth. Ideal for standard 1310nm/1550nm telecom.

VCSEL

(Vertical-Cavity Surface-Emitting Laser)

Low cost, easy to form arrays. Ideal for shortreach data centers.

Limitation : Less suited for long-reach / highpower

Comb Laser

Crucial for 102.4T CPO.

Generates multiple precise wavelengths from one device, enabling massive WDM density

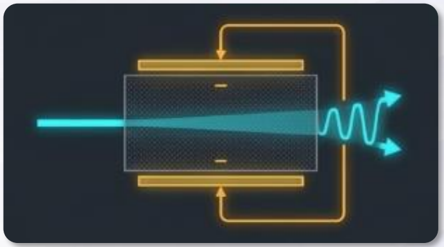

Step2 : The Modulator Showdown

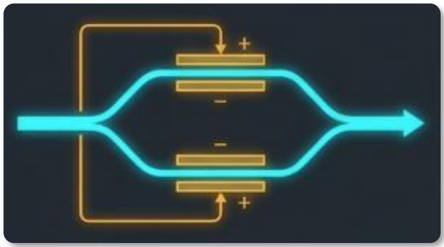

MZM ( Mach-Zehnder )

EAM ( Electro-Absorption )

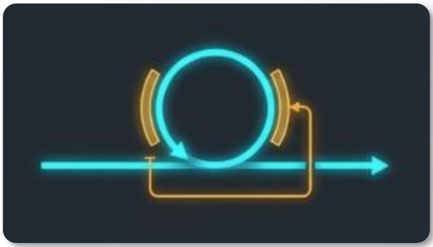

MRM ( Micro-Ring )

Footprint	Large (1-3 mm)	Micro (10-20 um)	Small (50-100 um)
High	Medium	Medium	Bandwidth
High	Critical(Requires TEC)	Medium	Thermal Stability
Excellent	Moderate	Poor	PAM4 Linearity
Highest(10+ Yrs)	Medium	Medium	Yield / Maturity
Broadcom / Intel / Marvell / Lightmatter / Cisco	nVIDIA / AyarLabs	Coherent / Lumentum / Intel	Customer

Source : Official Website

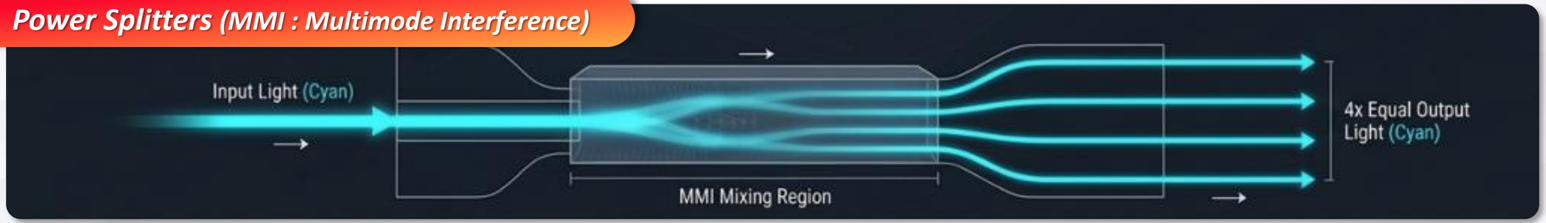

Step3 : Routing The Light

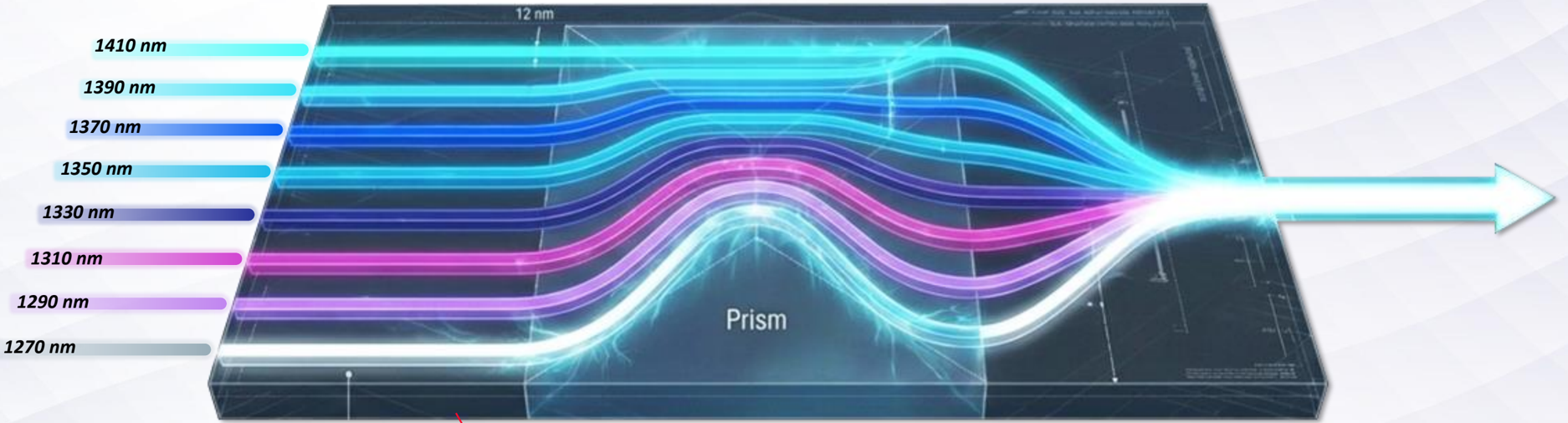

Step4 : Wavelength Division Multiplexing (WDM)

Target KPI

• Crosstalk must be maintained at -20 dB.

Step5 : I/O Coupling Strategy

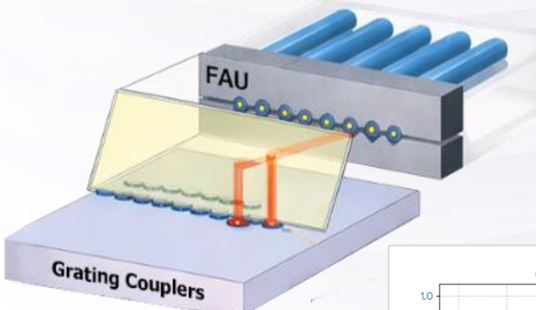

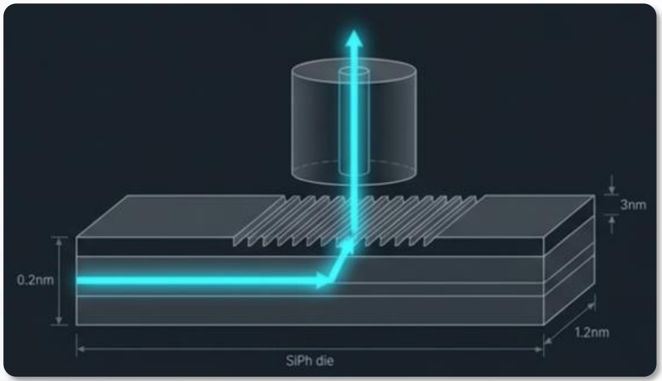

Grating Couplers

Light enters/exits vertically. High insertion loss, wavelength sensitive.

Advantage

Enables wafer-level testing (testing from the top before dicing).

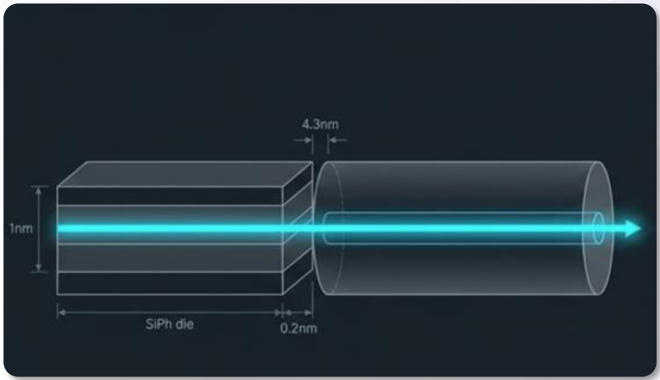

Edge Couplers

High bandwidth, ultra-low insertion loss (<1.0 dB). Polarization insensitive. Ideal for 128-core FAU.

Challenge

Demands extreme sub-micron alignment precision.

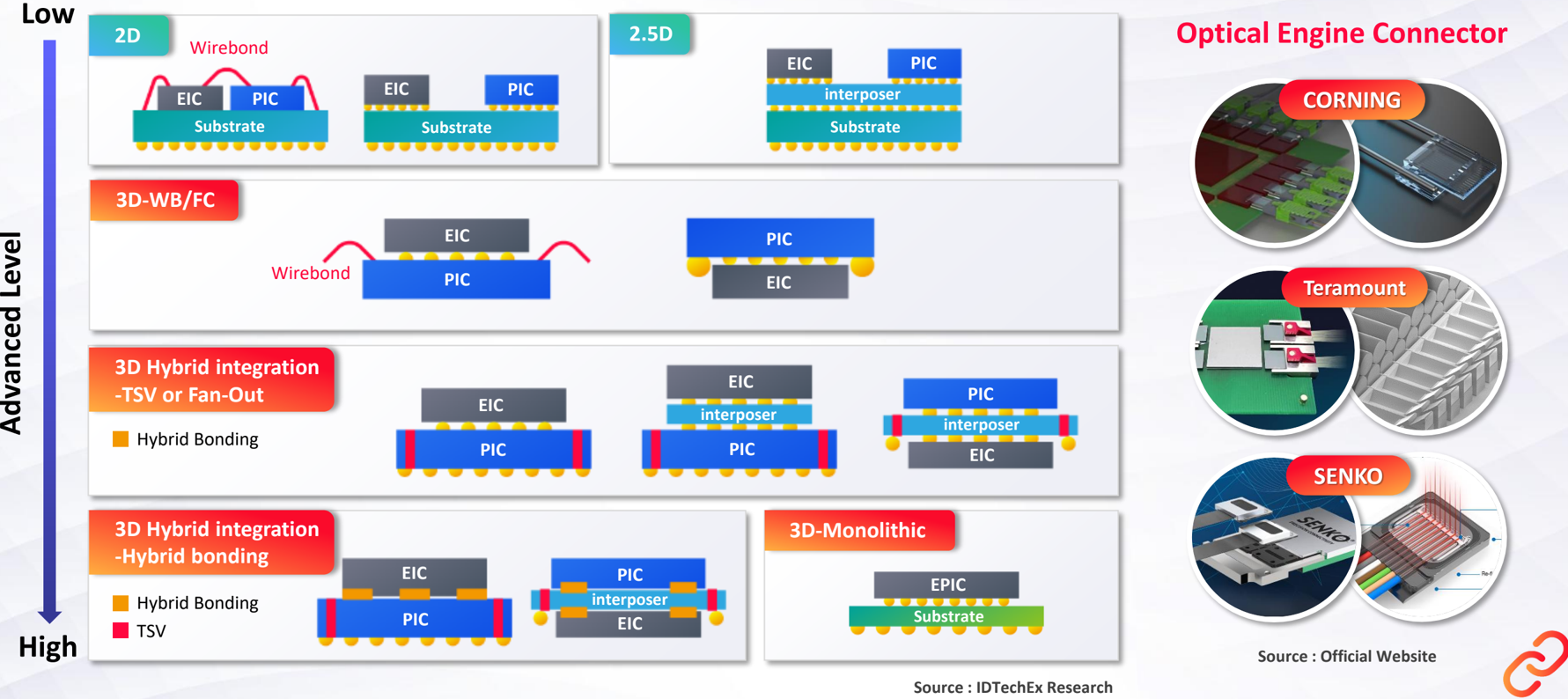

Different Optical Engine Design

Source : IDTechEx Research

Marvell

From OE to Module / Spec Diversity

RAAHHARA

nVIDIA

nVIDIA

Lightmatter

Lightmatter

Broadcom

AyarLabs

Broadcom

Source : Official Website

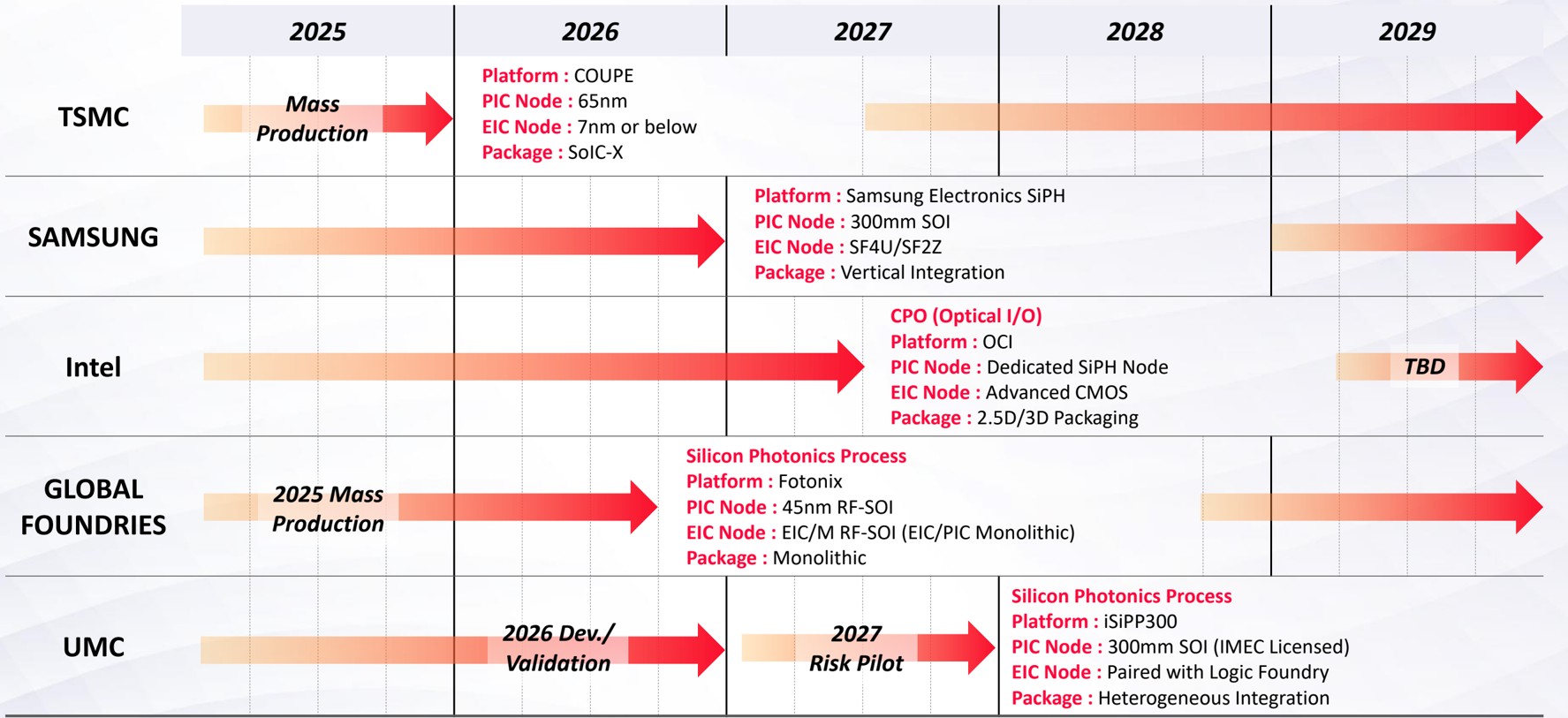

Key Foundries of Silicon Photonics and CPO

Source : DIGITIMES, 2026/04

Bottleneck of Testing in CPO Production

Winkay

Tech

CPO Test Flow / Production Bottle Neck

Passive Cable Attachment

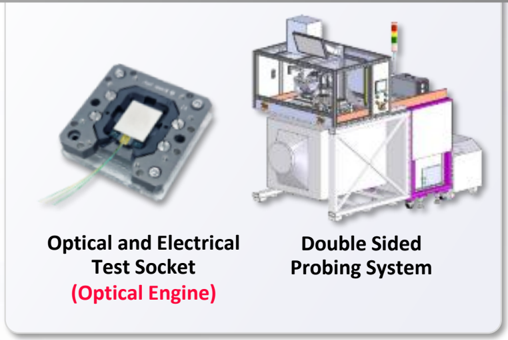

Electro-Optical Testing of Engines

Source: Teradyne

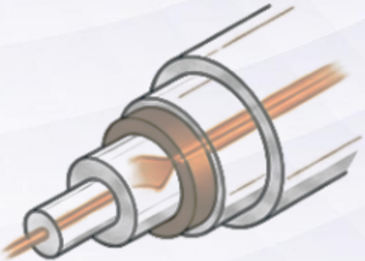

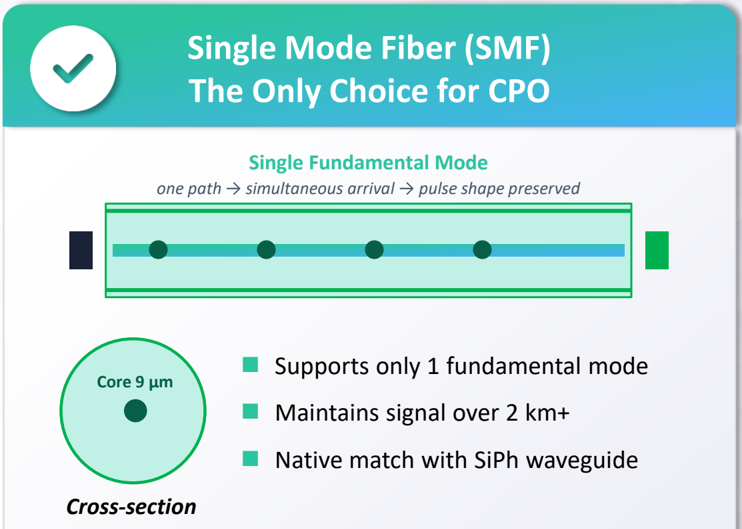

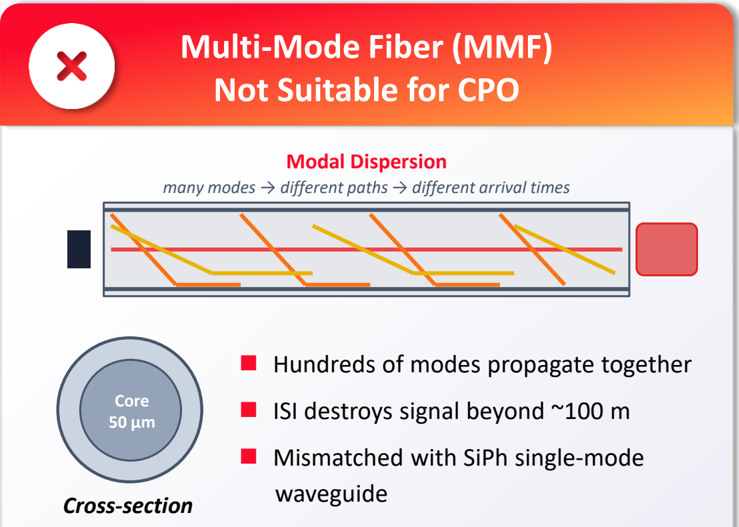

Why Must CPO Use Single Mode Fiber (SMF)?

Result: collapses beyond 100 m or above 100 Gbps

Result: enables 200 Gbps+ over 2 km+, ideal for CPO deployment

The silicon photonics waveguide itself is single-mode -light leaving the ASIC is fundamental-mode from the start. Using SMF is not a design choice for CPO; it is a physical consequence dictated at the wafer level by the silicon photonics platform.

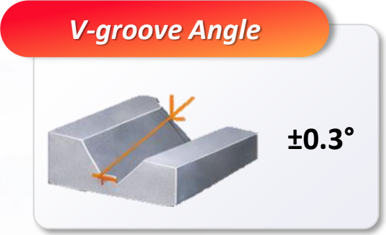

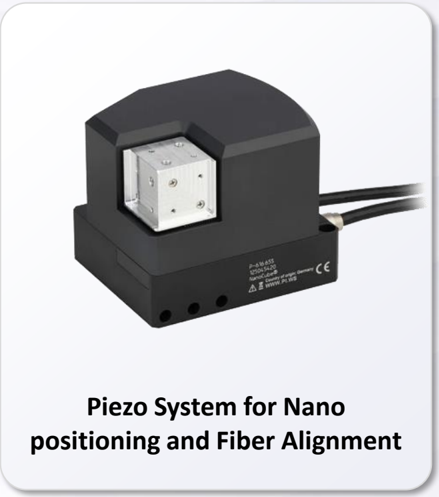

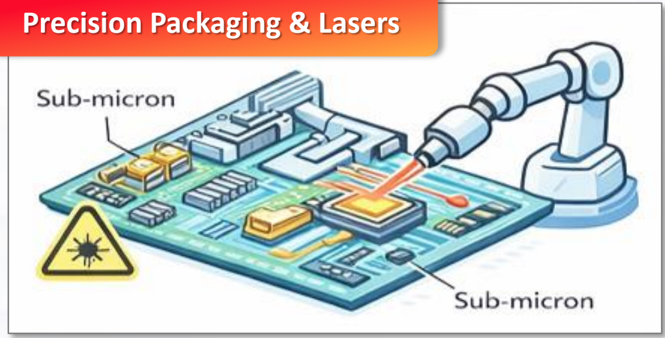

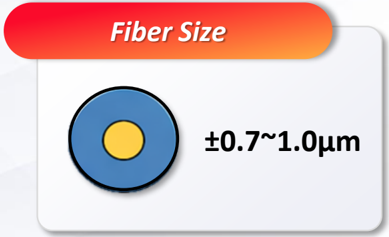

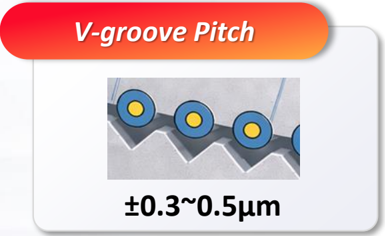

FAU Active Alignment Challenge

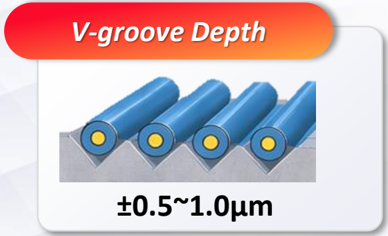

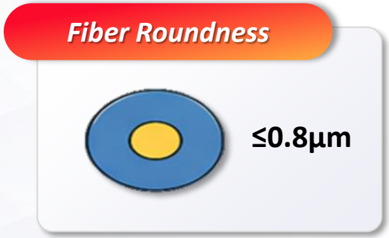

Tolerance Stack-up: 3.8 μ m| 42% of core diameter.

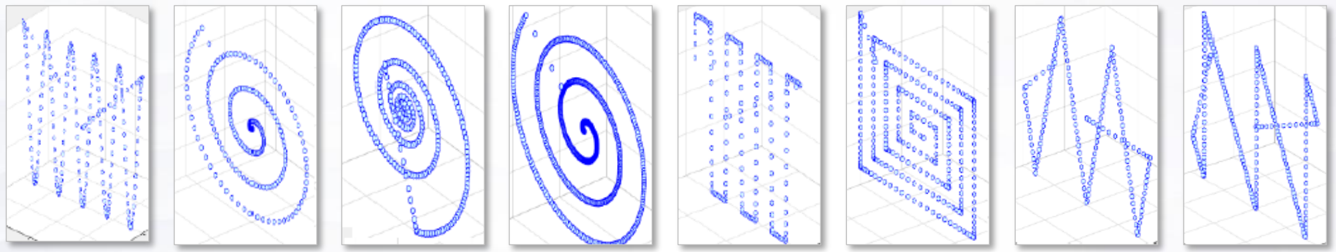

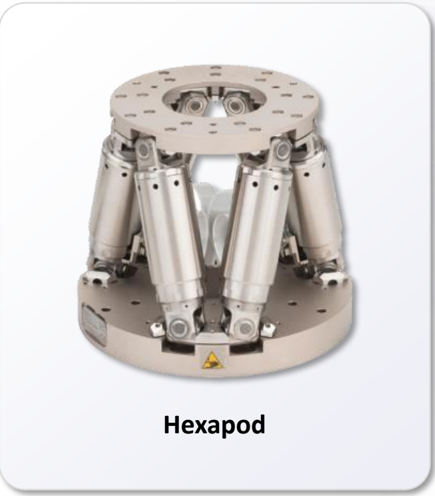

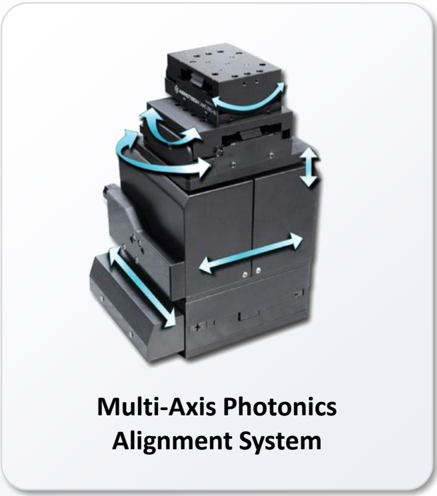

Active Alignment

CPO Production Assessment

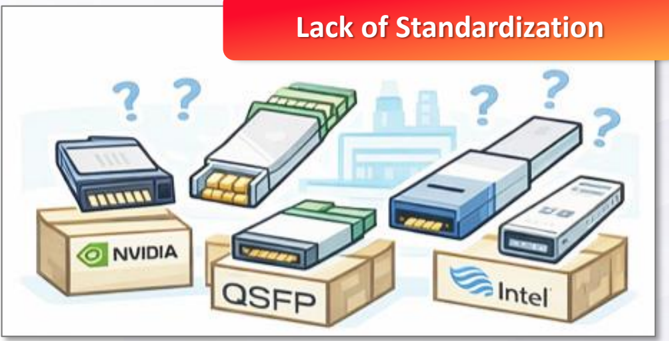

Module Test Challenge

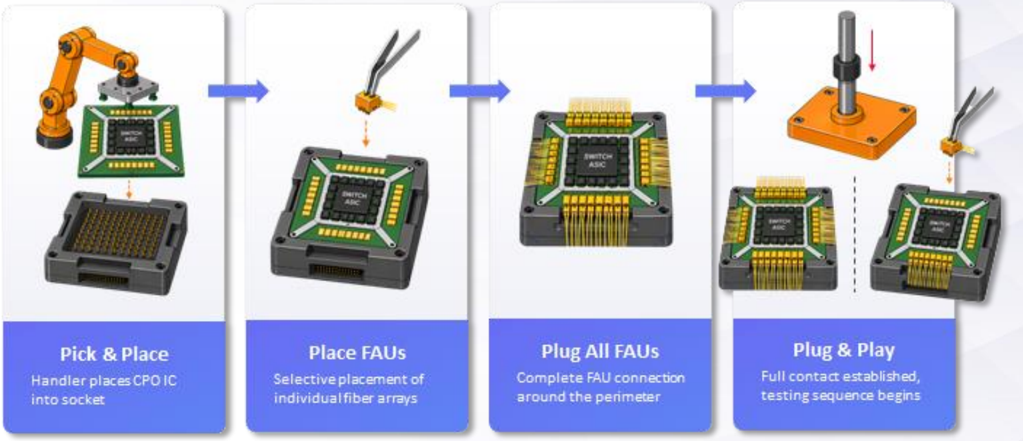

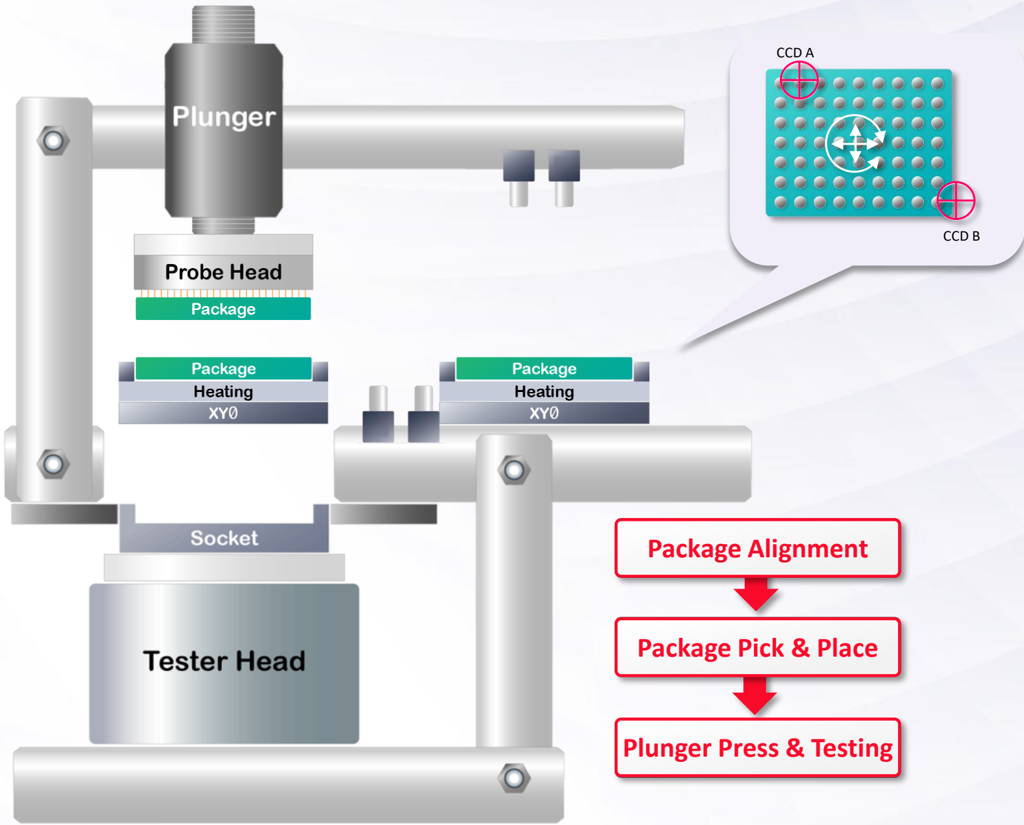

Pick & Place, Plug & Play

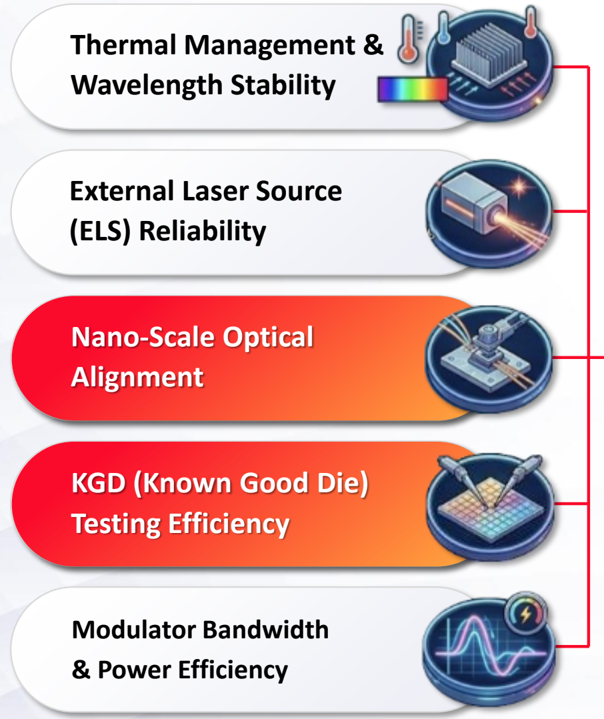

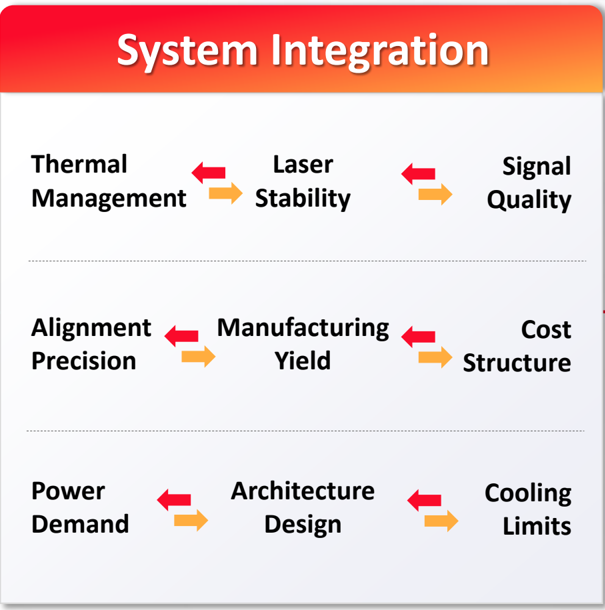

CPO Production Bottleneck Four Technical Issues

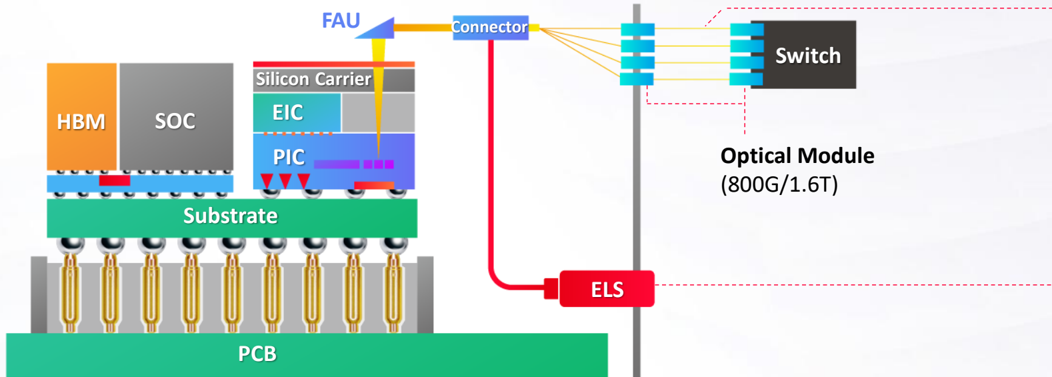

Co-Packaged Optics Test Flow

Package Level

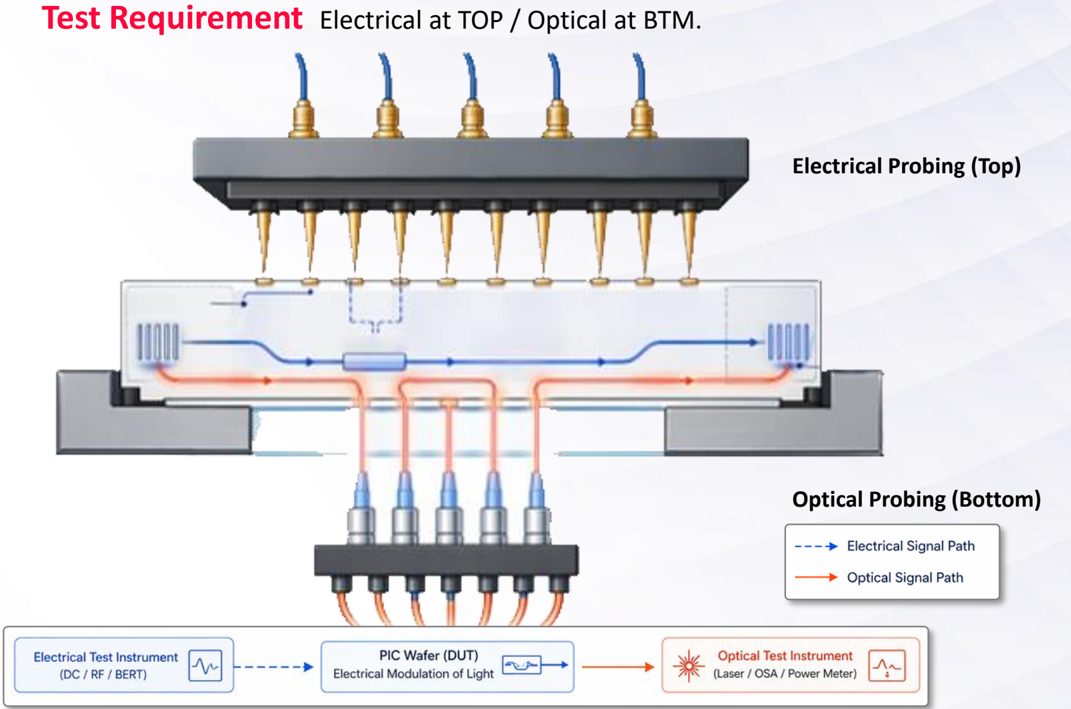

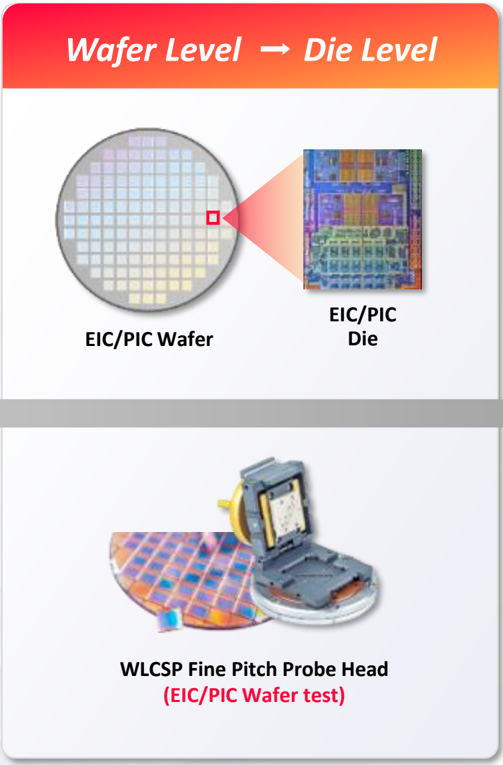

Wafer Level Test Methodology

Die Level Test Methodology

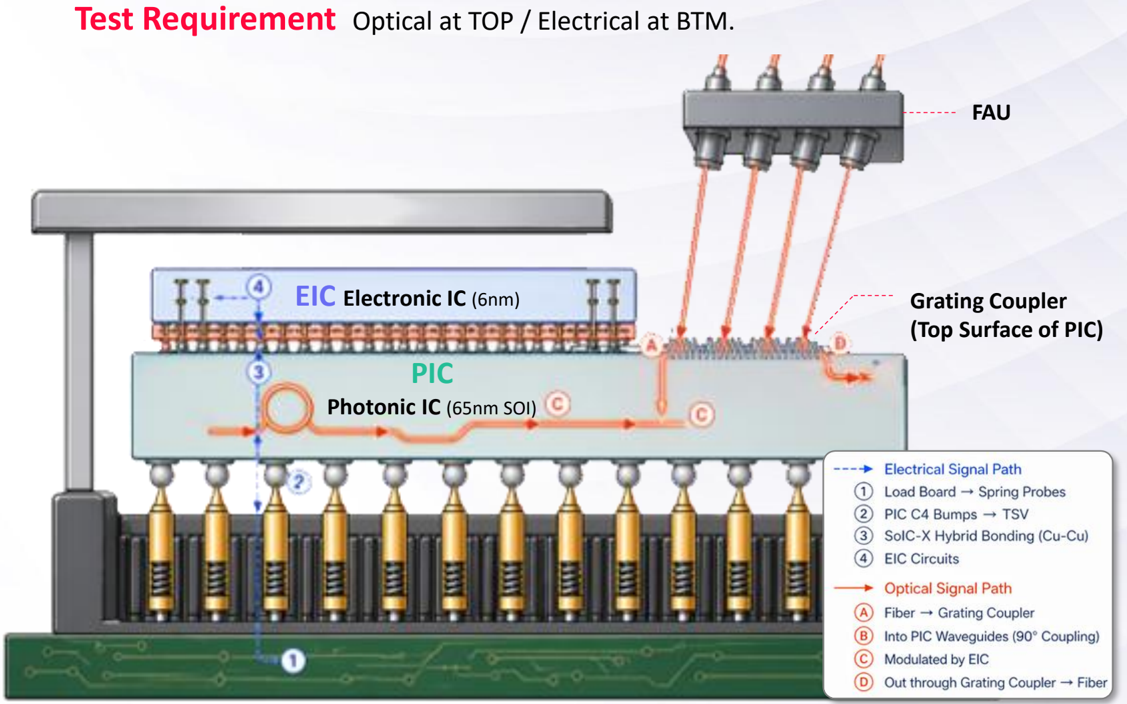

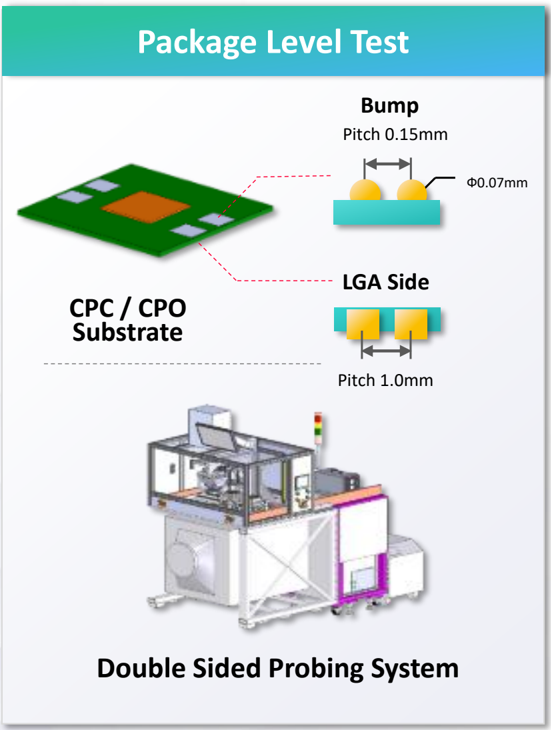

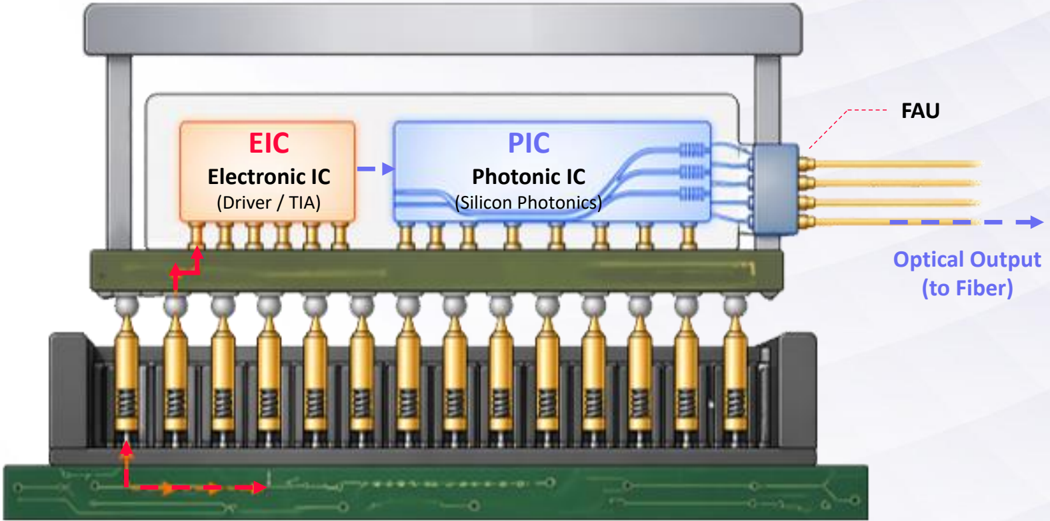

Package Level Test Methodology

Test Requirement Active alignment , Passive alignment, Direct with FAU

Electrical Signal Path (Load Board → EIC)

Optical Signal Path (EIC → PIC → Fiber)

Package Level Test Methodology

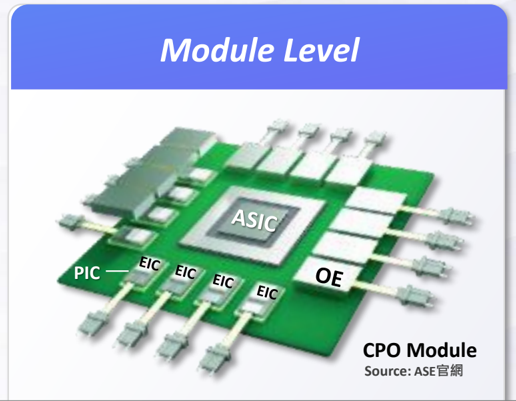

Module Level Test Methodology

Test Requirement Test speed, Alignment, Mechanism Design.

CPO Roadmap

Winkay

Tech

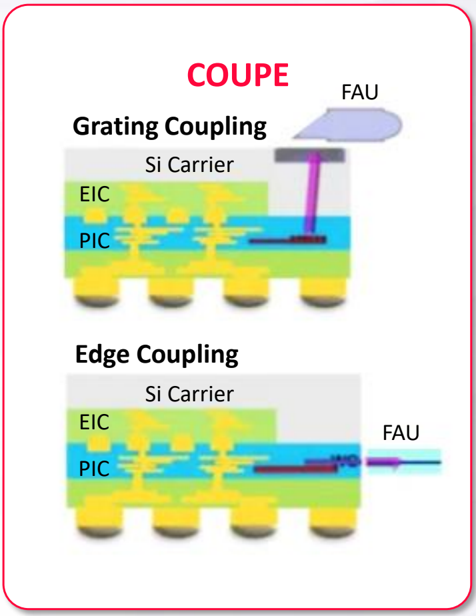

COUPE : COmpact Universal Photonic Engine

Source : TSMC

Bandwidth

CPO Roadmap

The I/O Interface Evolution

CPO/CPC Application

Winkay

Tech

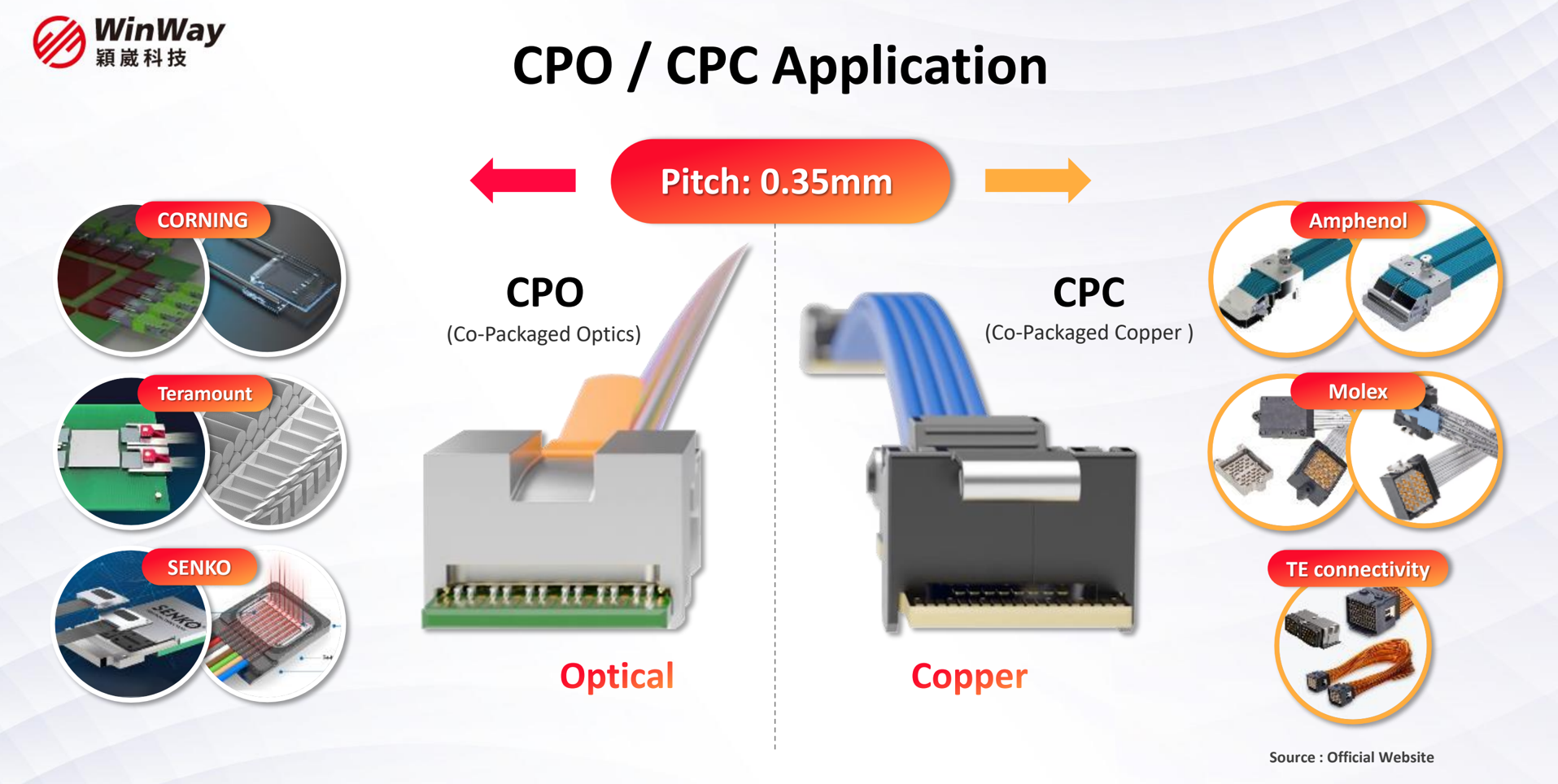

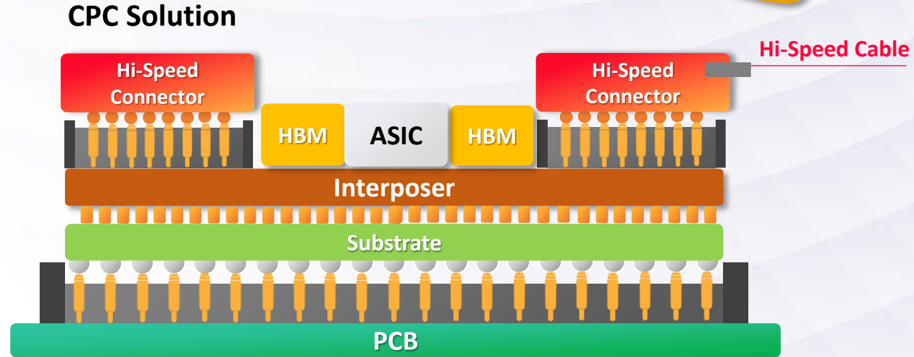

CPO / CPC Application

Source : Official Website

WinWay CPO/CPC Total Solution

Winkay

Tech

Future Technical Challenge

A. Mechanical Extremes

B. Electrical Performance Barriers

• Package Size > 100 mm up to 200mm
• Pin Count > 10,000 pins up to 50,000 pins

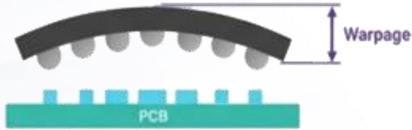

• Key Challenge Warpage up to 0.6mm

Technical Development Direction to ‘Optics’

The challenges of package testing have evolved from a focus on mechanical machining accuracy to multi-physics coupled design , encompassing mechanical integrity, electrical performance, thermal management.

• Signal Speed 224Gbps PAM4 and beyond
• Key Challenge Signal Integrity, Crosstalk

C. Thermal Density Crisis

• Power Consumption > 4000W per device
• Key Challenge Thermal Runaway / Solder Melt

Interposer Size

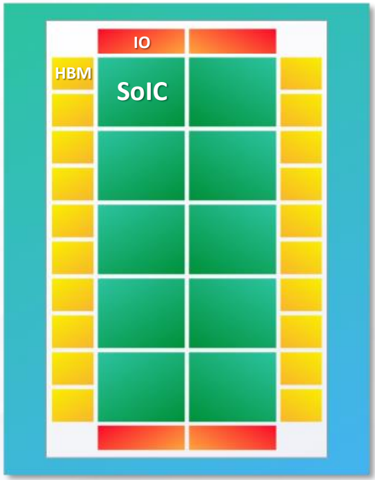

A. Mechanical Extremes / TSMC

Package size dimension determine by # of Die, Memory, High Speed I/O Channel, Manufacturing limitation…

Source : IDTechEx Research

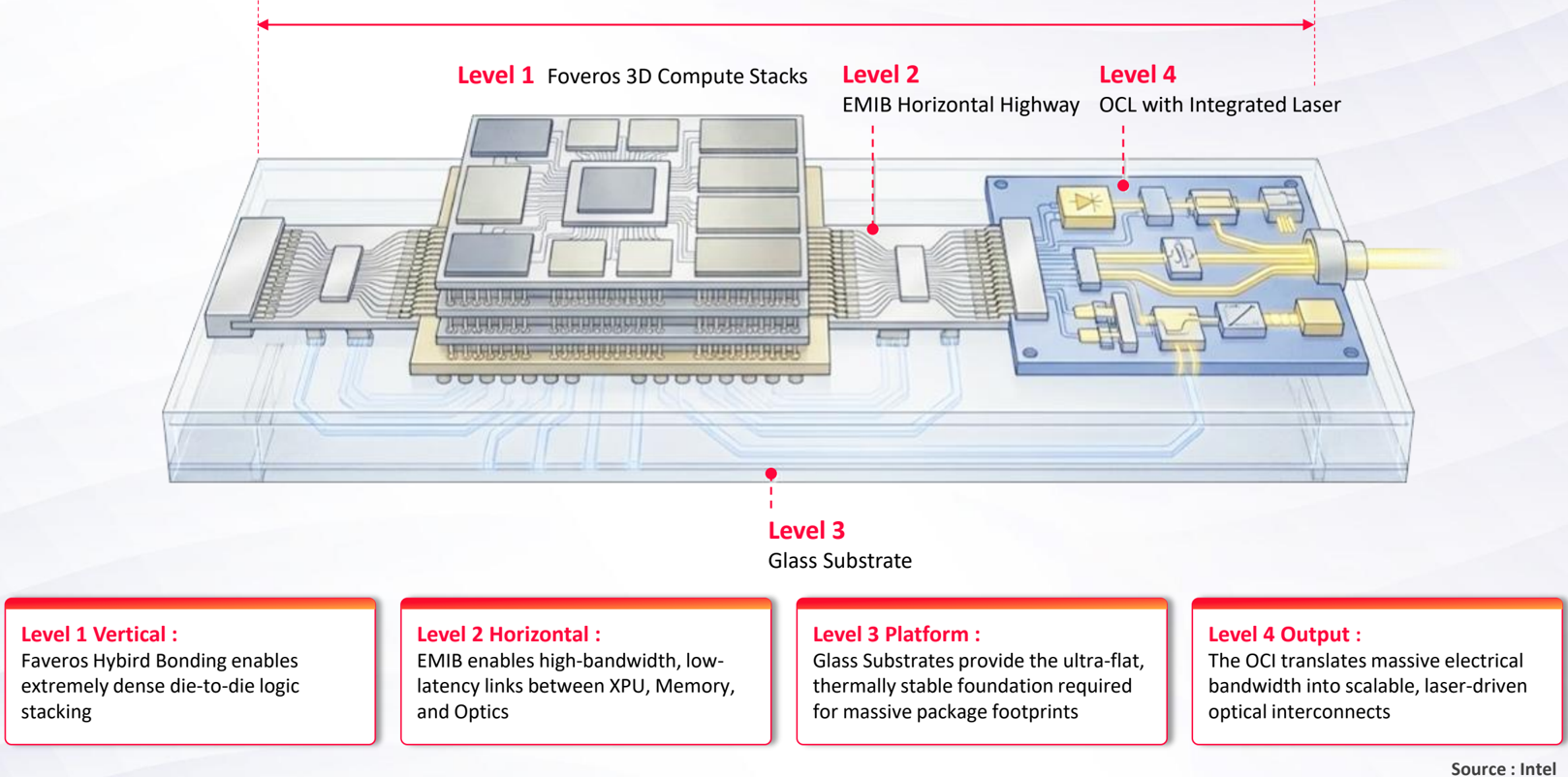

A. Mechanical Extremes /Intel

Source : Intel

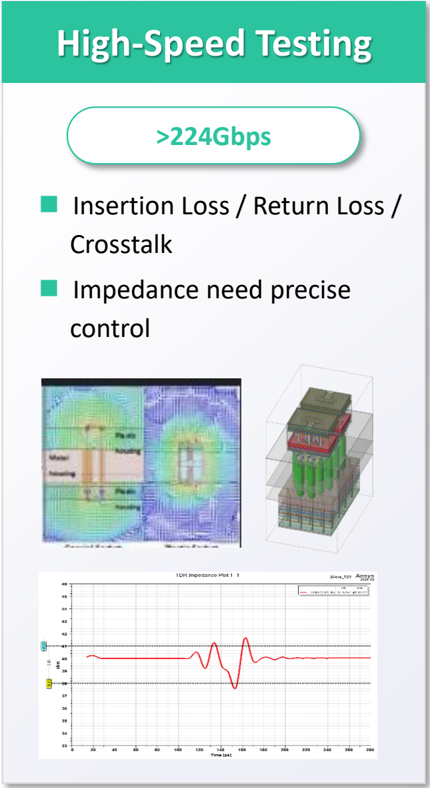

B. Electrical Performance Barriers

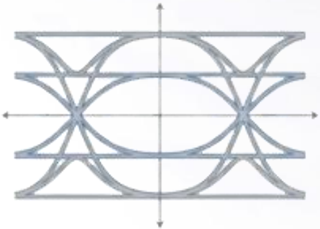

Parameter	224G (PAM4)	448G(PAM4)	448G(PAM6)	448G(PAM8)
224Gbps	448Gbps	448Gbps	448Gbps	Data rate
log 2 4 =2	log 2 4 =2	log 2 6 ~2.58	log 2 8 =3	Bits / Symbol
112 GBaud	224 GBaud	~173.6 GBaud	~150 GBaud	Baud Rate
56GHz	112GHz	86.8 GHz	74.7GHz	Nyquist Freq.
0 dB (Ref)	0 dB (Ref)	-3.7 dB	-6.2 dB	SNR Penalty
Medium	High	Higher	Highest	DSP Complexity
Mature ecosystem : Feasible on standard PCB/Cable	Simple architecture : Best theoretical SNR.	Goldilocks Choice : Balances BW&SNR.	Low Baud Rate for 448G target	Pros
Requires 2X lanes to match 448G total rate.	Bandwidth Wall : Unfeasible for copper	SNR Penalty : Complex encoding logic	SNR Cliff : Requires powerful FEC	Cons

The 448G Electrical Wall

Copper Channel Loss

Insertion loss approaches -10dB on just 1 inch of premium dielectric at 112 GHz Nyquist.

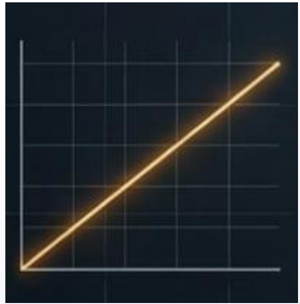

Dielectric Loss Multiplier

Loss scales linearly with frequency.

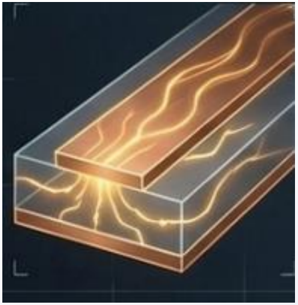

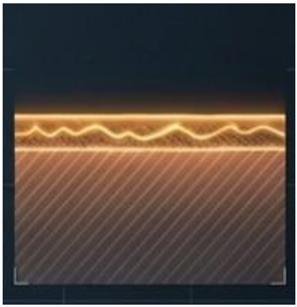

The Skin Effect Limit

At > 100GHz, skin depth drops below 0.2 um

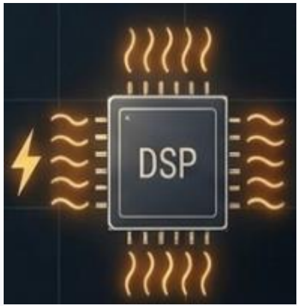

DSP Power Explosion

Compensating for physical loss requires ADC sampling > 224 GS/s.

1 reticle Max. 830mm 2 Chip heat density design reference : 1.12 W/mm 2

• ◼ Advanced Thermal Control System
• ◼ Higher CCC requirement (>6A/pin)

C. Thermal Density Crisis

GPU Architecture	2026 AI Chip	2032	2029 2035
GPU Die Size 728mm	2 750mm 2	700mm 2	600mm 2
GPU Power 800W	900W	1,000W	1,200W
Interposer Size GPU HBM Interposer
X2	X4	X4	# of GPU Dies X8
HBM4 X8	HBM5 X8	HBM6 X16	# of HBM Stack HBM7 X32
75W	100W	120W	HMB Power per Stack 180W
2,198mm 2 (46.2 mmx48.5 mm)	4,788mm 2 (85.2 mmx56.2 mm)	6,014mm 2 (102.8 mmx58.5 mm)	Interposer Die Stack 9,245mm 2 (96.4 mmx95.9
16/32 TB/s	48 TB/s	128/256 TB/s	Total Bandwidth 1,024 TB/s
Total HBM Capacity 288/384 GB	400/500	Source : KAIST 1,536/1,920 GB	TERALAB GB 5,120/6,144
Total Power 2,200W	4,400W	5,920W	15,360W

Source : KAIST TERALAB

A+B+C : Heterogeneous Integration

CPO is the path to success in near future

The Problem with Organic Substrates

• ◼ Thermal / Mechanical Instability
• ◼ Electrical Loss

High CTE Mismatch Silicon:

Causes Warping & Misalignment

Organic Substrate

Why Glass is the Breakthrough Solution

• ◼ Superior Stability
• ◼ Pristine Electrical Performance
• ◼ Advanced Integration

Near-Perfect CTE Match to Silicon:

Glass interposer / Substrate

Challenges of Advanced Package Test Solutions

High Pin Count

>20KPin

• ◼ Preload force
• ◼ Maintenance
• ◼ Random fail concern

Housing Warpage by Preload

Contact Resistance random fail (If 20 pin fail/20,000~0.1%)

High Heat Density

>4000W

• ◼ Socket thermal domain
• ◼ Thermal run away

IC>4000W

Socket Power Loss>500W

Socket housing thermal distribution

Innovation of Hybrid Architecture / Conventional Test Interface

Elastomer

Spring probe

Length(mm)	0.5~2.0	★ 1.5~6 even longer depend on the requirement
★ <50 (Multiple contacts)	<60 (Design dependent, including probe structure)	Resistance (mohm)
0.2(Min.)~0.4(Max.)	★ 0.35(Min.)~1.0(Max.)	Travel (mm)
20~50/per bump	★ 15~25/per pin	Force(g)
~4	★ Up to 6	CCC(A)
Not really applicable	★ Applicable	Coaxial Structure
★ clean by sticker	clean by brush/clean pad/laser	Maintenance
Whole piece, but easy to replace	★ Individual probe replaeable, but take times to replace &maintenance	Spare part
• Hard to balance lower force <20g, contact resistance and lifetime PS: Normally, reflected force varies from 30~50g/per bump • Shorter contact travel <0.4mm(Max) to cover package warpage • Shorter lifetime (can not replace individually) • No coaxial structure for large package application	• Limited four contact points of top plunger design • Need regular clean to maintain Cres • Physical damage to solder ball and pad if wrong setup	Limitation

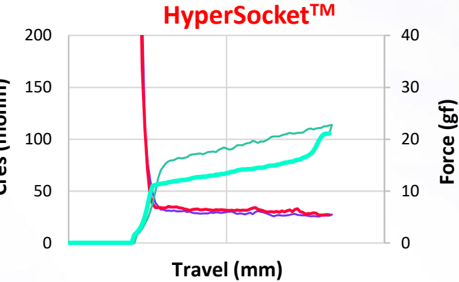

Innovation of Hybrid Architecture HyperSocket TM

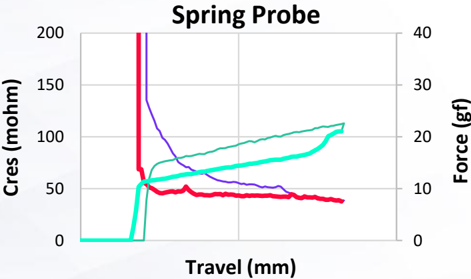

Contact Resistance

Cres (mohm)

Current Carrying Capacity

Why HyperSocket is suitable for Advantaged Package Testing(Ultra Large Package)?

Limitation	Characteristics
Elastomer Lifetime	Significantly increase contact surface between contactor to solder ball and PCB pad
Higher Initial investment	Less and stable contact resistance↓30%
	Higher current carrying capacity(C.C.C.)↑30% Less joule heat generation by high current↓30% No housing warpage of spring probe socket Lower total test cost of ownership: Factory operation,
	Hardware, Maintenance and Test interface including Change Over Kit, Socket, PCB.

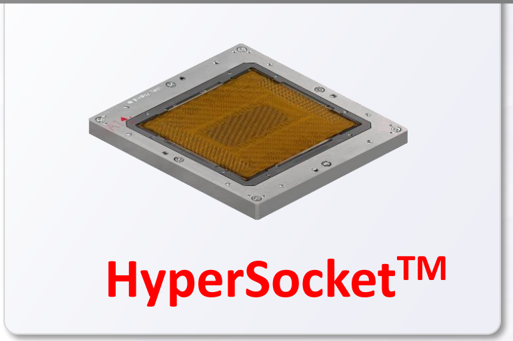

Innovative Test Solution HyperSocket TM

Requirements for HyperSocket TM Design

• ◼ Package Size

• ◼ Pin count

• ◼ Device Warpage

• ◼ High Current Density

• ◼ SACQ(Frequent Clean)

• ◼ Solder Ball Melting

• ◼ Probe bent and worn out issue

>100 X 100 mm 2

>10,000 pin

>0.4 mm

>6 A

~10 TD

Patent NO .

• TWI862047
• TWI922268
• TWI862191
• TWI901161
• TWI884802
• TWI923382

Hyper-UF

Frequent Clean, Solder Ball Melting

Hyper-DH

High Current Density, Probe Bent

Hyper-LF

Ultra Large Package, High Pin Count

Hyper-Liquid

Under Validation

Extremely High Power > 2500W

• TWI901181
• CN220584352
• US(Granted )

Summary

Winkay

Tech

CPO Market Trends & Challenges

2026 - 2028 is the golden window for ASIC platform flexibility.

One ASIC supporting both CPO and CPC -Scale-up via CPO for performance, Scale-out via pluggable for flexibility.

NVIDIA SIGNALS

• 1.6T CPO saves 180MW at million-GPU scale
• Spectrum-X: 5 × efficiency, 2Tb/s, 10 × reliability
• CPO and copper coexist, layered deployment

FUTURE TRENDS

• Scale-up is the main battlefield
• Adoption: coexist → expand → mainstream
• ELS architecture, DSP-free design

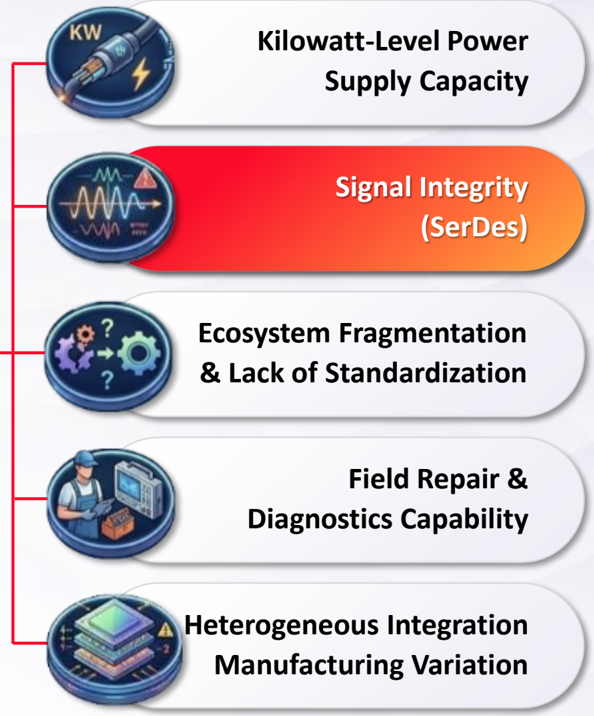

CORE CHALLENGES

• Thermal & yield: one defect kills package
• Serviceability: operations SOP rebuilt
• Standards & cost: ecosystem immature

WinWay is Ready for CPO & CPC Testing

Q

Your Trusted Partner in Semiconductor Testing

THANK YOU

You may contact WinWay Technology via sales@winwayglobal.com

+886 7 361 0999 / +886 3 656 8282

www.winwayglobal.com
